| Weight: |
56 - 9.35 kg / 20.62 lbs (with TLR sealant, no tubes) |
| Frame: |

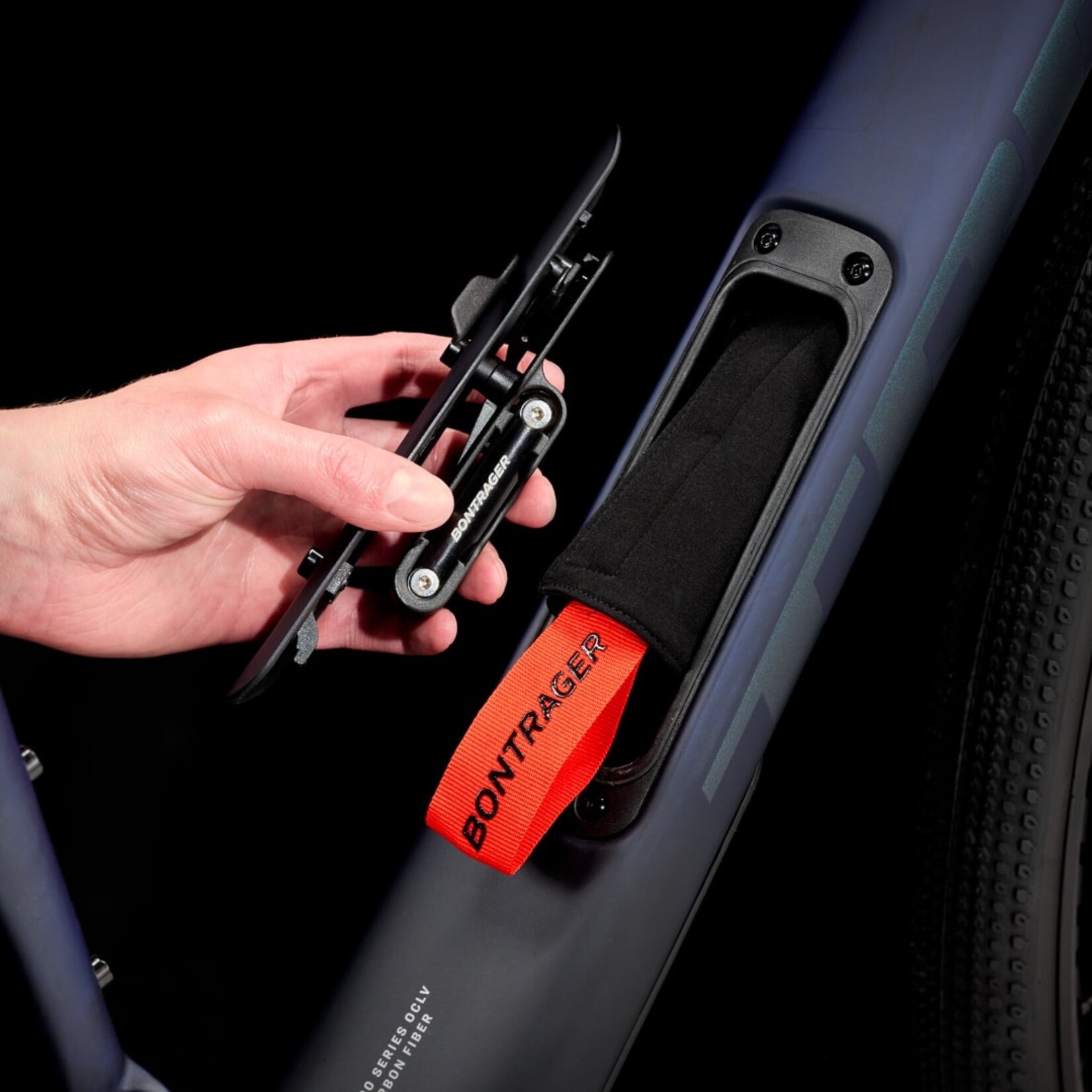

500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle |
| Fork: |

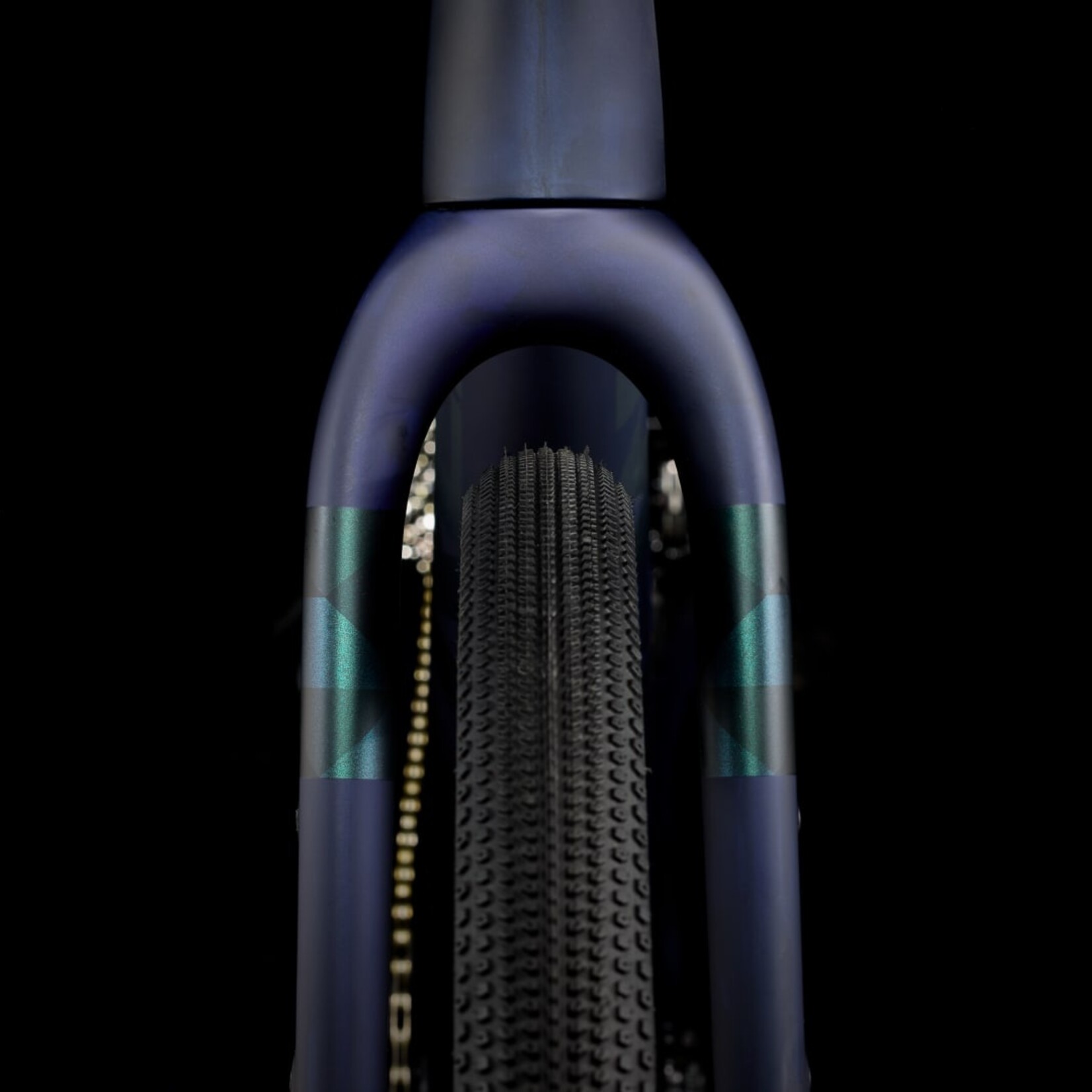

Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Shock: |
N/A |
| Front Shifter: |
N/A |
| Front Derailleur: |
N/A |
| Rear Shifter: |
SRAM Rival eTap AXS, 12 speed |
| Rear Derailleur: |
SRAM Rival XPLR eTap AXS, 44T max cog |
| Crankset: |
SRAM Rival, 40T, DUB Wide; 165 mm length (49cm), 170 mm length (52cm), 175 mm length (54 and 56cm), 172.5 mm length (58 and 61cm) |
| Pedals: |
N/A |
| Bottom Bracket: |
SRAM DUB, T47 threaded, internal bearing |
| Cassette: |

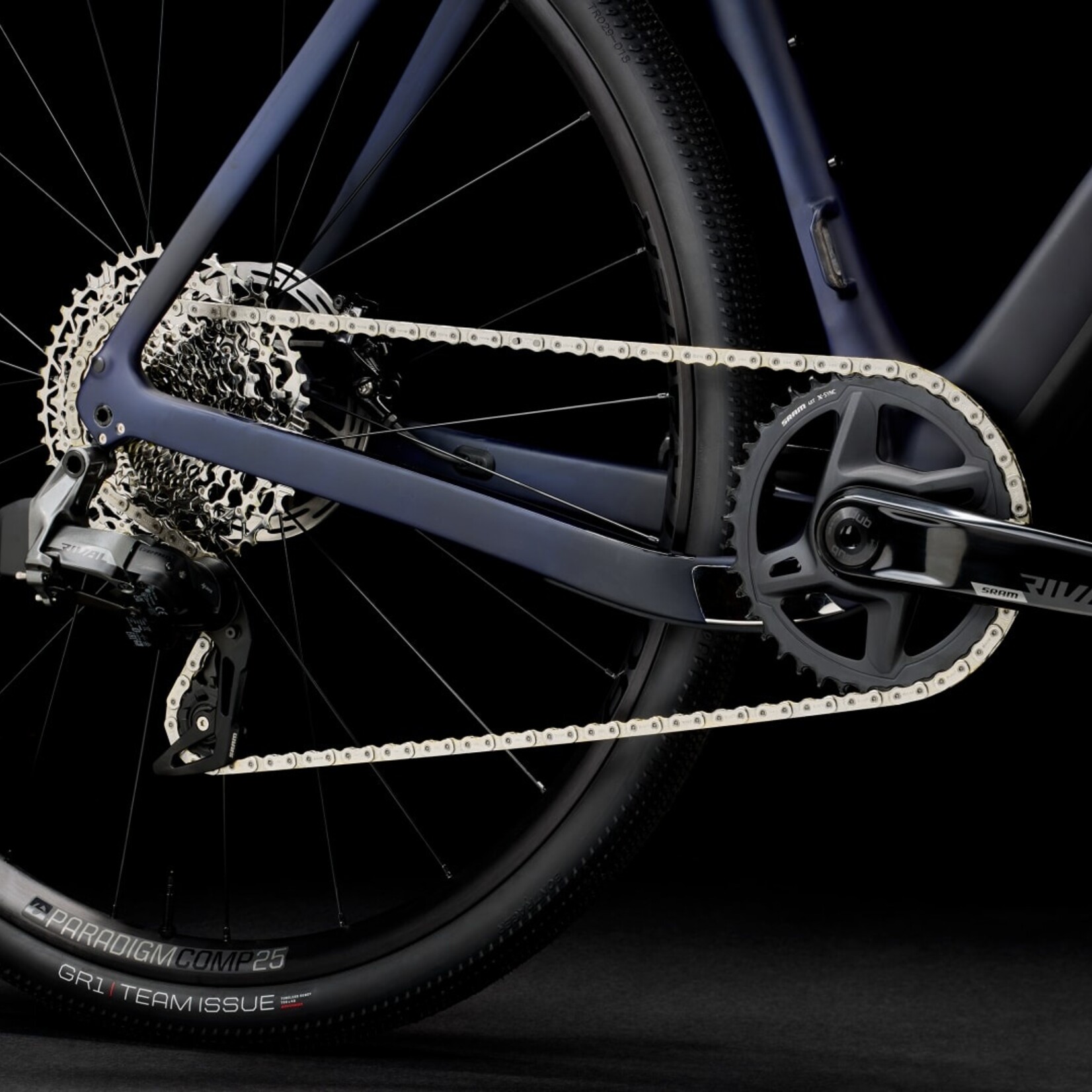

SRAM XG-1251, 10-44, 12 speed |
| Chain: |
SRAM Rival, 12 speed |
| Front Brake: |
SRAM Rival hydraulic disc, flat mount |
| Front Brake Rotor: |
SRAM Paceline, rounded, centerlock, 160mm |
| Rear Brake: |
SRAM Rival hydraulic disc, flat mount |
| Rear Brake Rotor: |
SRAM Paceline, rounded, centerlock, 160mm |
| Brake Levers: |
SRAM Rival eTap AXS |
| Front Hub: |
Rapid Drive 54 road hubs |
| Front Hub Skewer: |
100x12 mm thru axle |
| Rear Hub: |
Rapid Drive 54 road hubs |
| Rear Hub Skewer: |
142x12 thru axle |
| Rims: |
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width |
| Front Tire: |
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
| Rear Tire: |
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
| Handlebar: |
Bontrager Elite Gravel, 38 cm width (49cm), 40 cm width (50cm), 42 cm width (54 and 56cm), 44 cm width (58 and 61cm) |
| Grips/ Bar Tape: |
Bontrager Supertack Perf tape |
| Stem: |
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree: 70 mm length (48cm), 80 mm length (52 and 54cm), 90 mm length (56 and 58cm), 100 mm length (61cm) |
| Headset: |
Integrated |
| Saddle: |
Bontrager P3 Verse Comp, steel rails: 155 mm width (49 and 52cm), 145 mm width (54, 56, 58 and 61cm) |
| Seatpost: |
Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Extras: |
|
