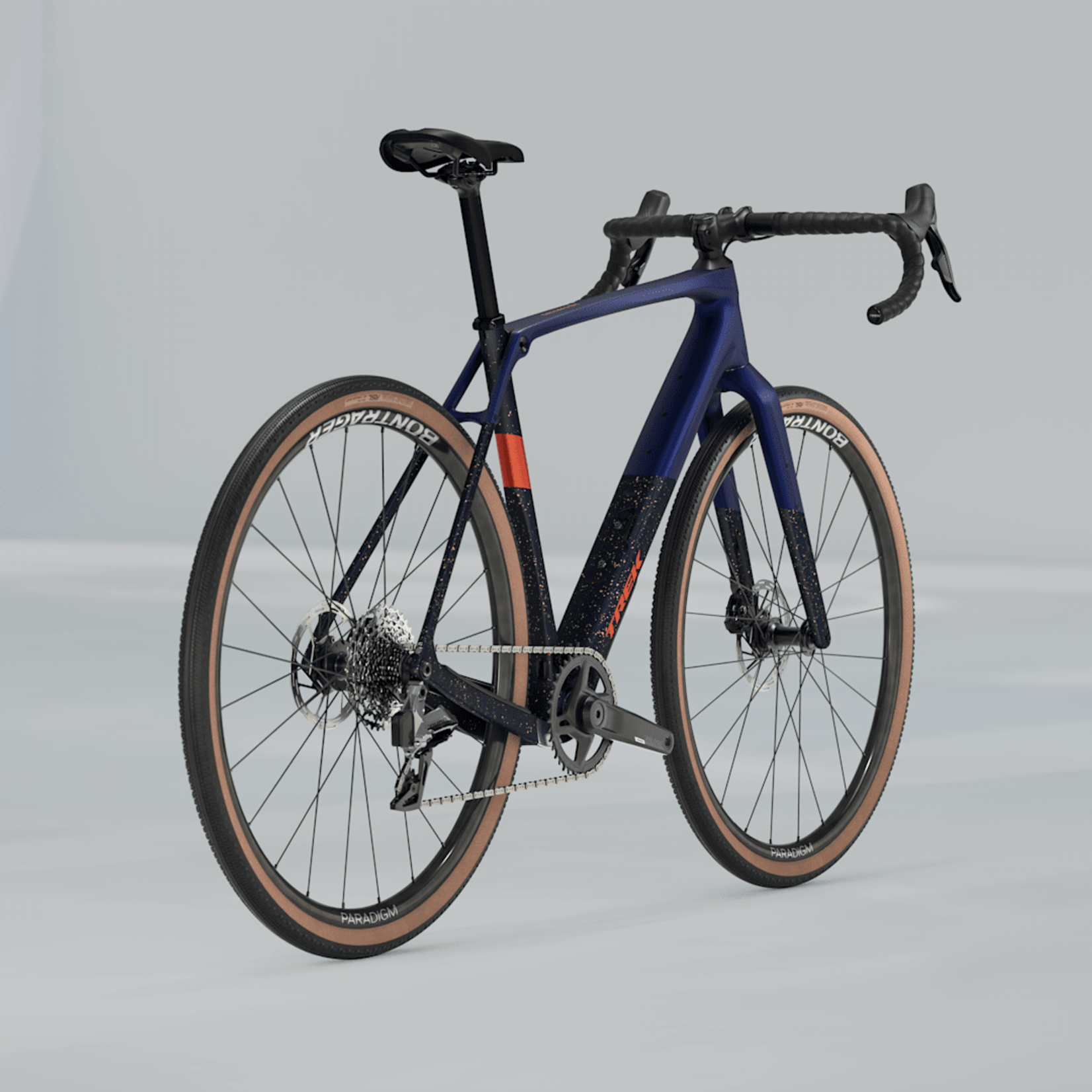

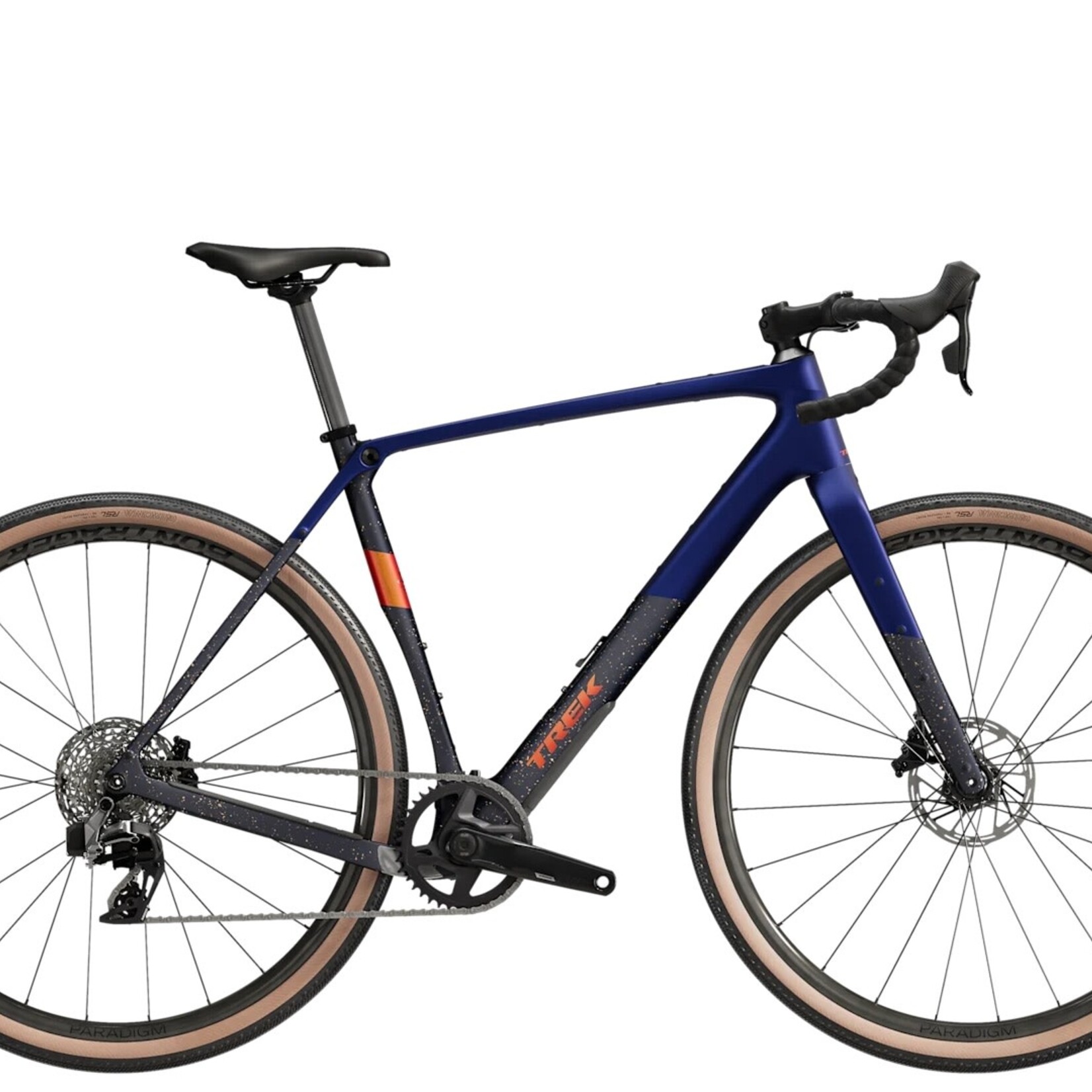

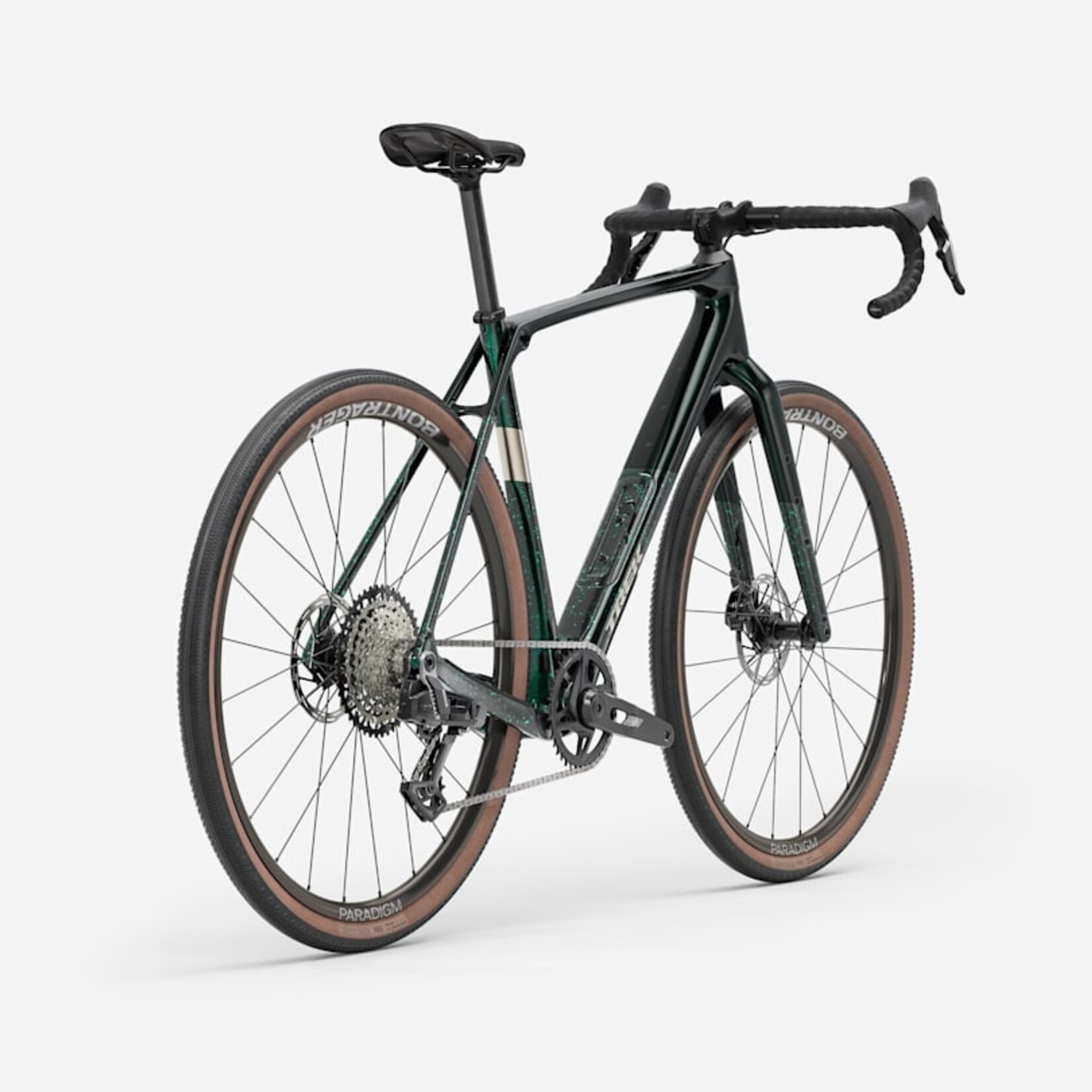

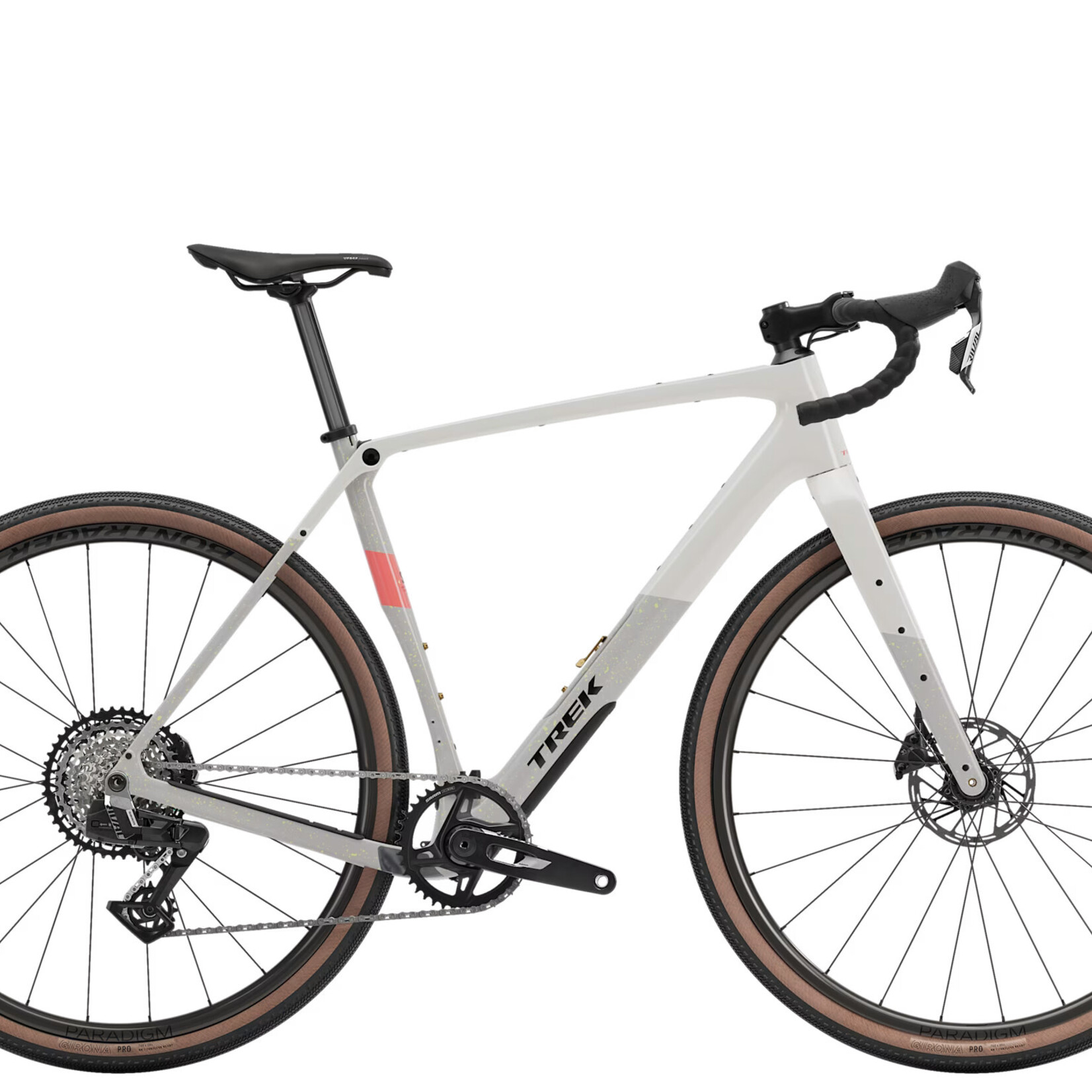

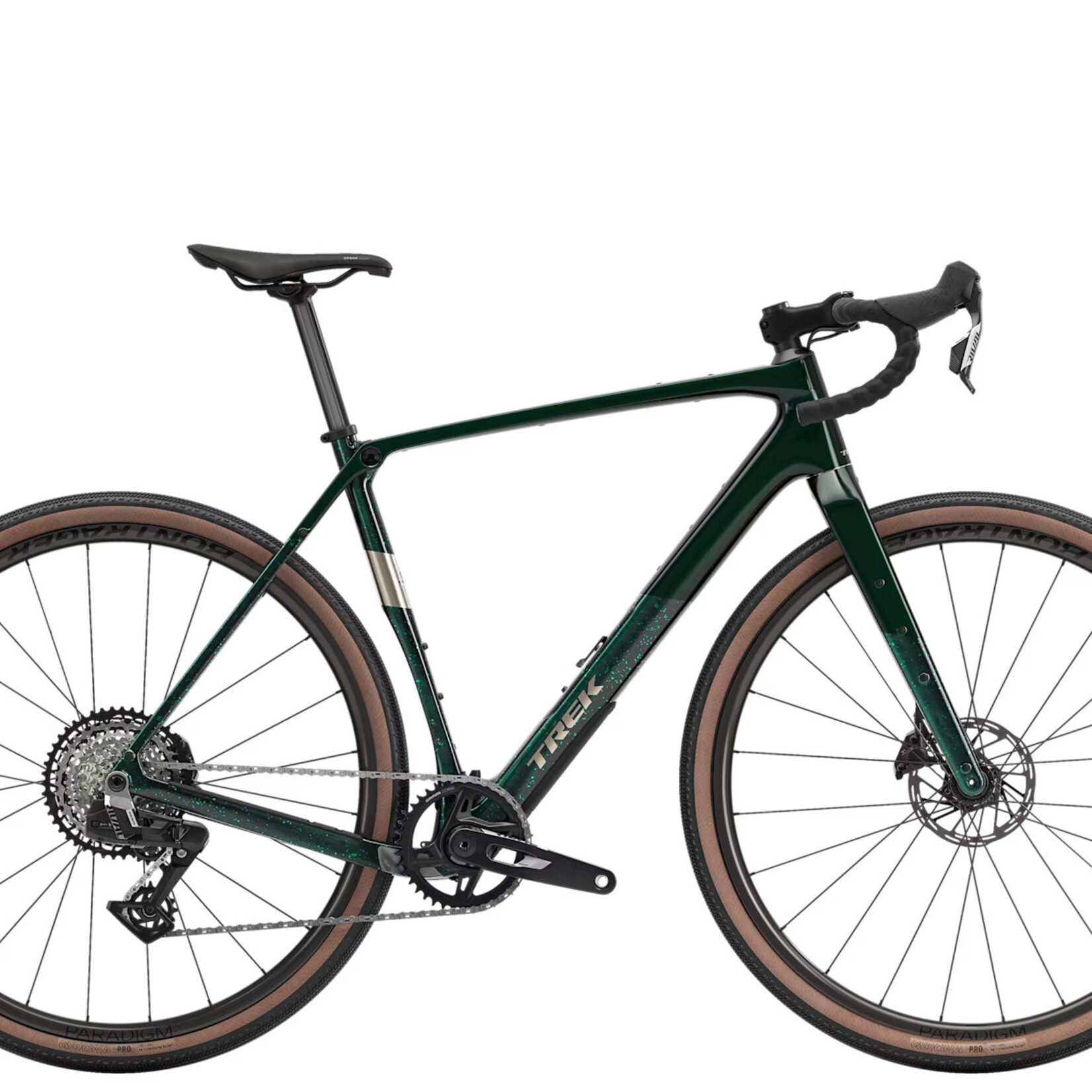

Trek Checkpoint SL 6 AXS Gen 3

You're itching for adventure and want a bike that's up for taking the road less traveled. You want IsoSpeed comfort tech to help you stay comfortable on the hardest miles, an upgraded drivetrain that can hang tough when the gravel gets deep, and plenty of mounts to carry your gear and hydration.

A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50mm tires (as measured). A 12-speed 1x SRAM Rival AXS fully wireless drivetrain, hydraulic disc brakes, carbon seatpost, and Tubeless Ready Bontrager Paradigm Comp wheels with 42mm tires.

Checkpoint SL 6 AXS Gen 3 is made to explore, with the chatter-smoothing benefit of IsoSpeed, a lightweight carbon frame, and upgraded components where they matter most, like the SRAM Rival AXS wireless shifting.

Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bikepacking trips, and more
Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher longer

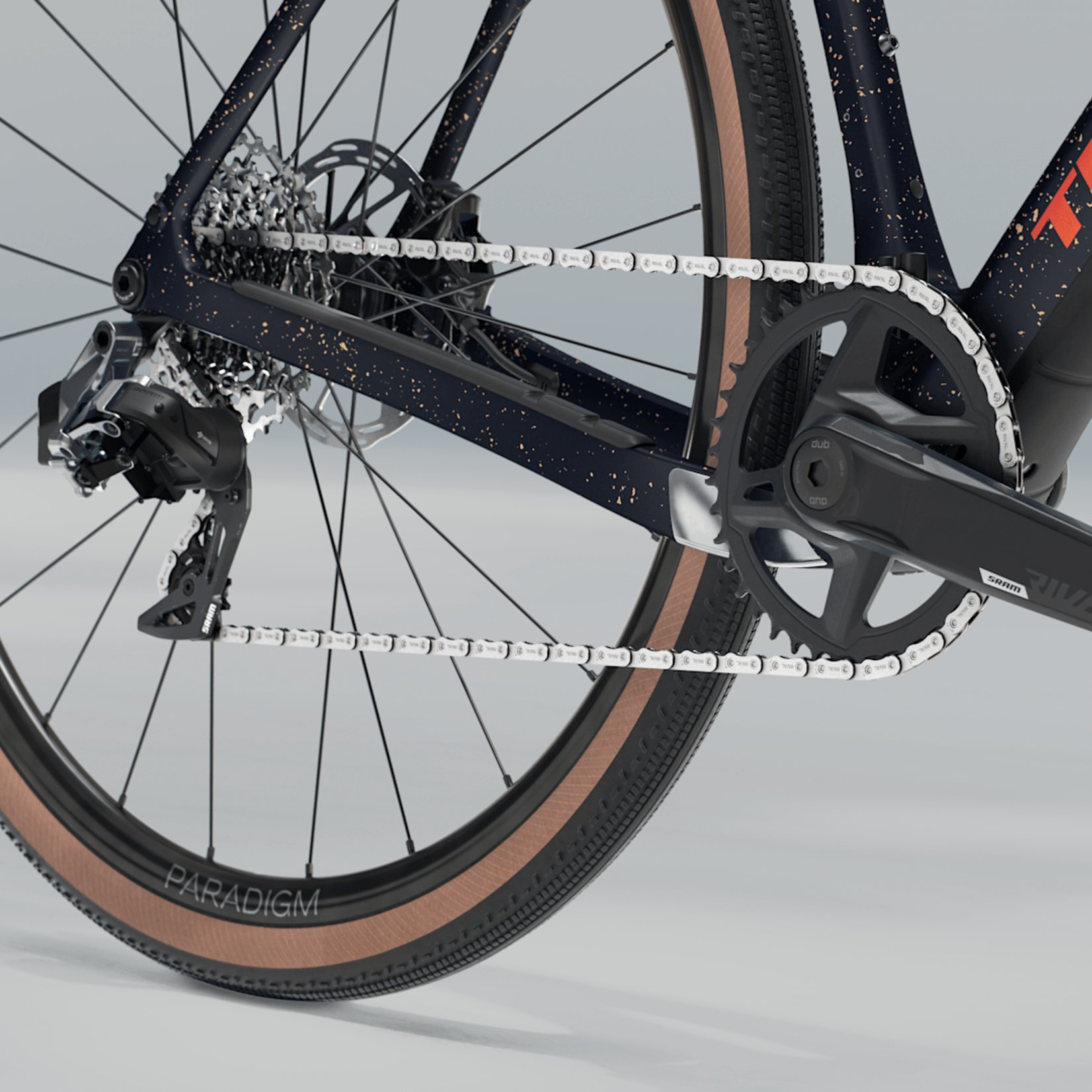

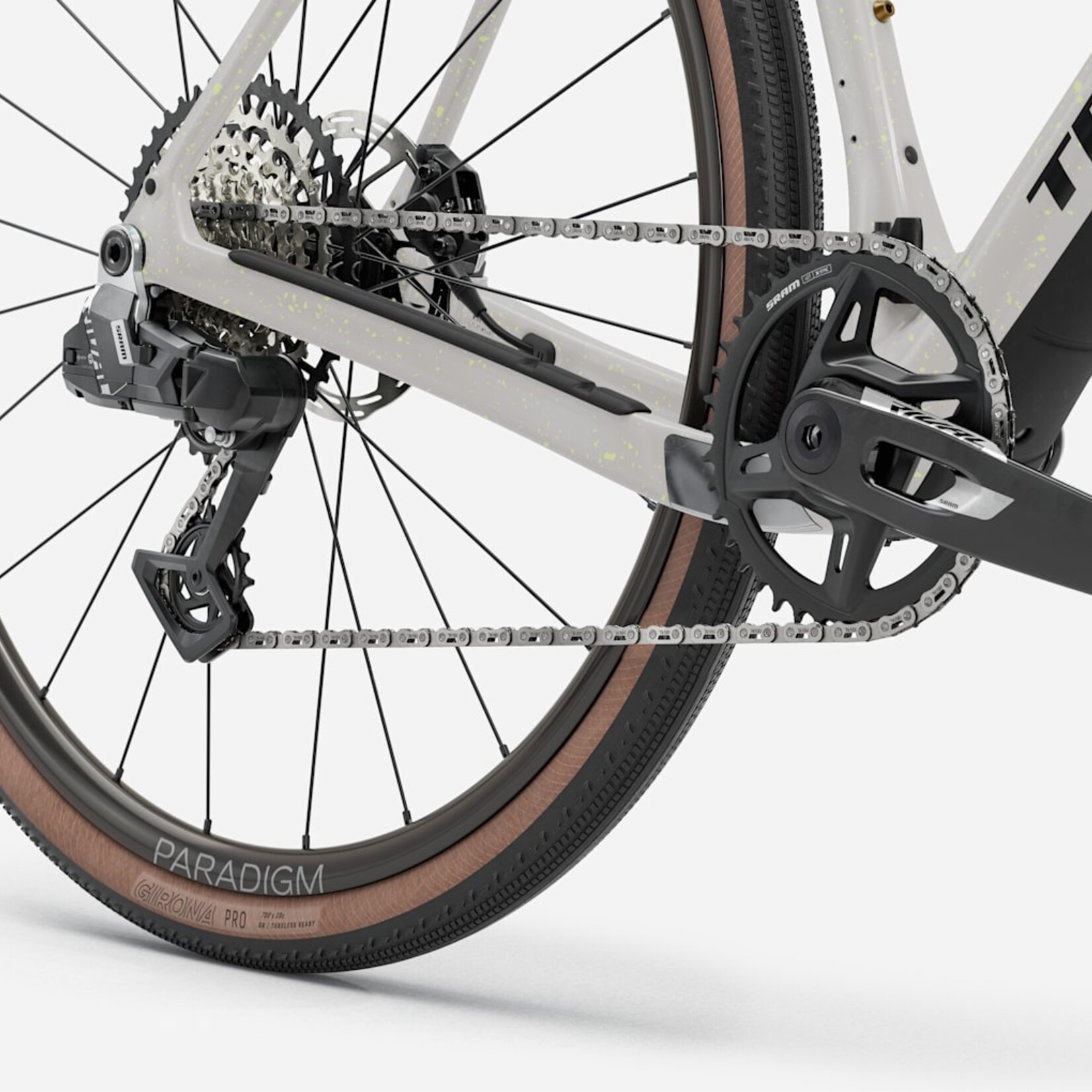

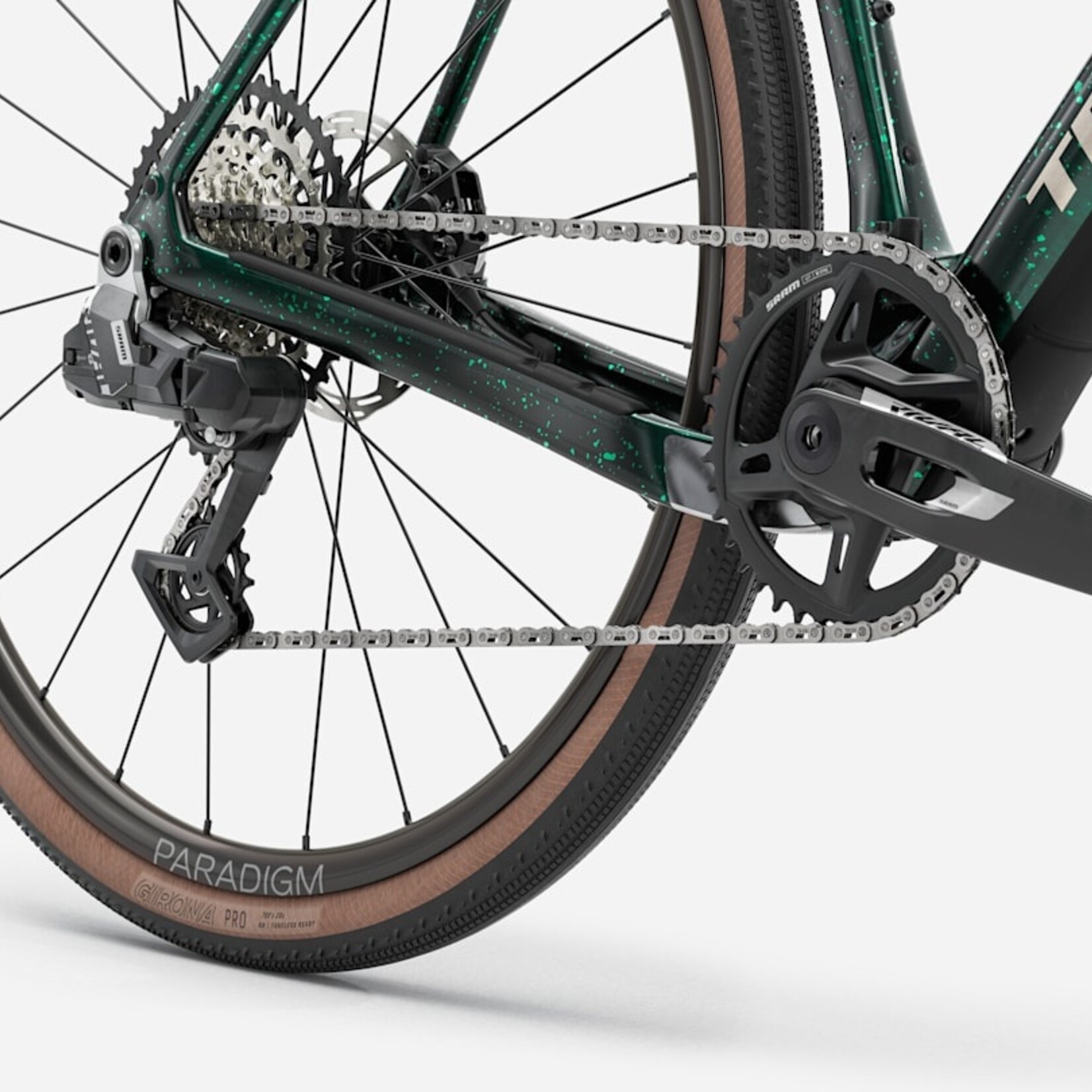

You get crisp and clean shifts from the upgraded SRAM Rival AXS wireless electronic 12-speed drivetrain

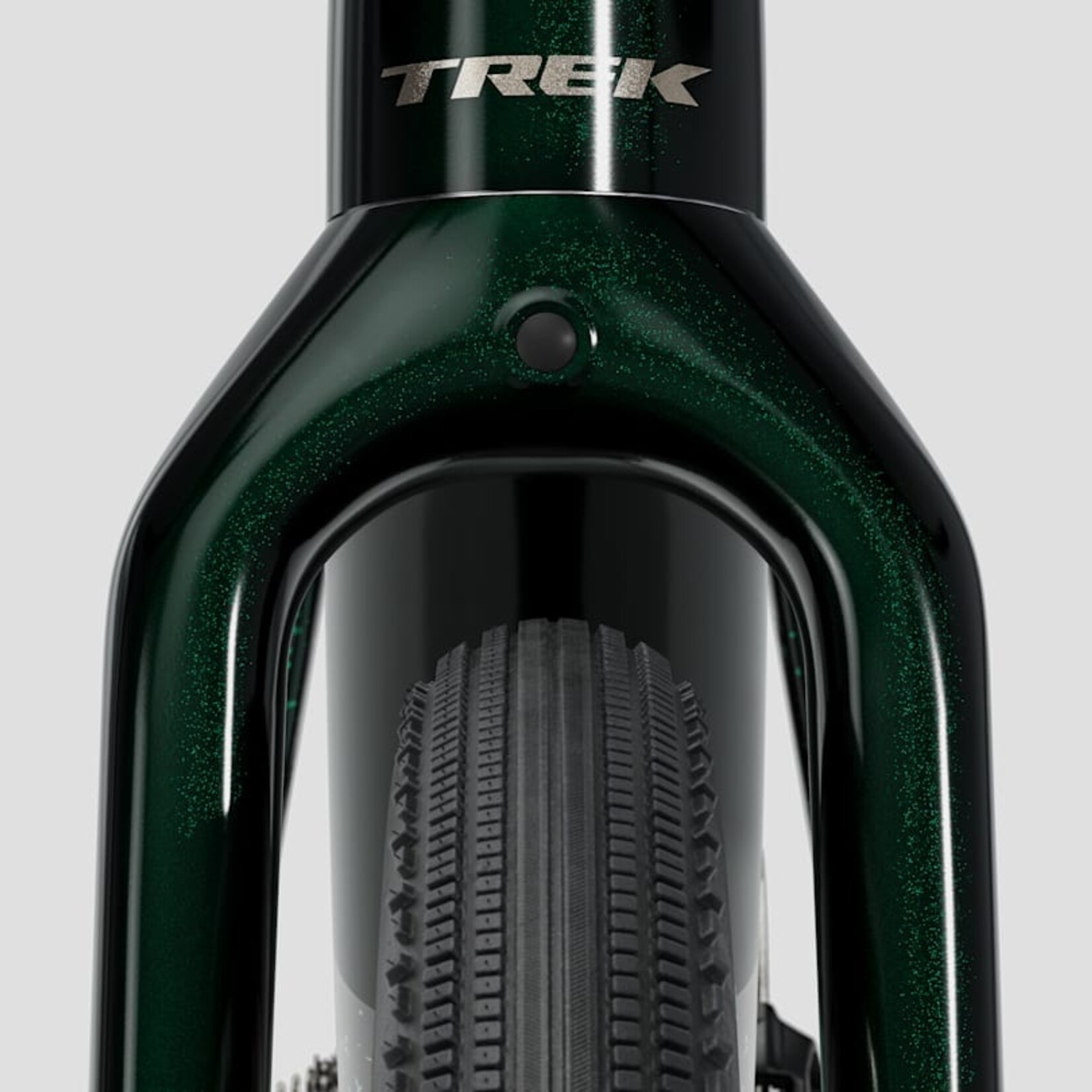

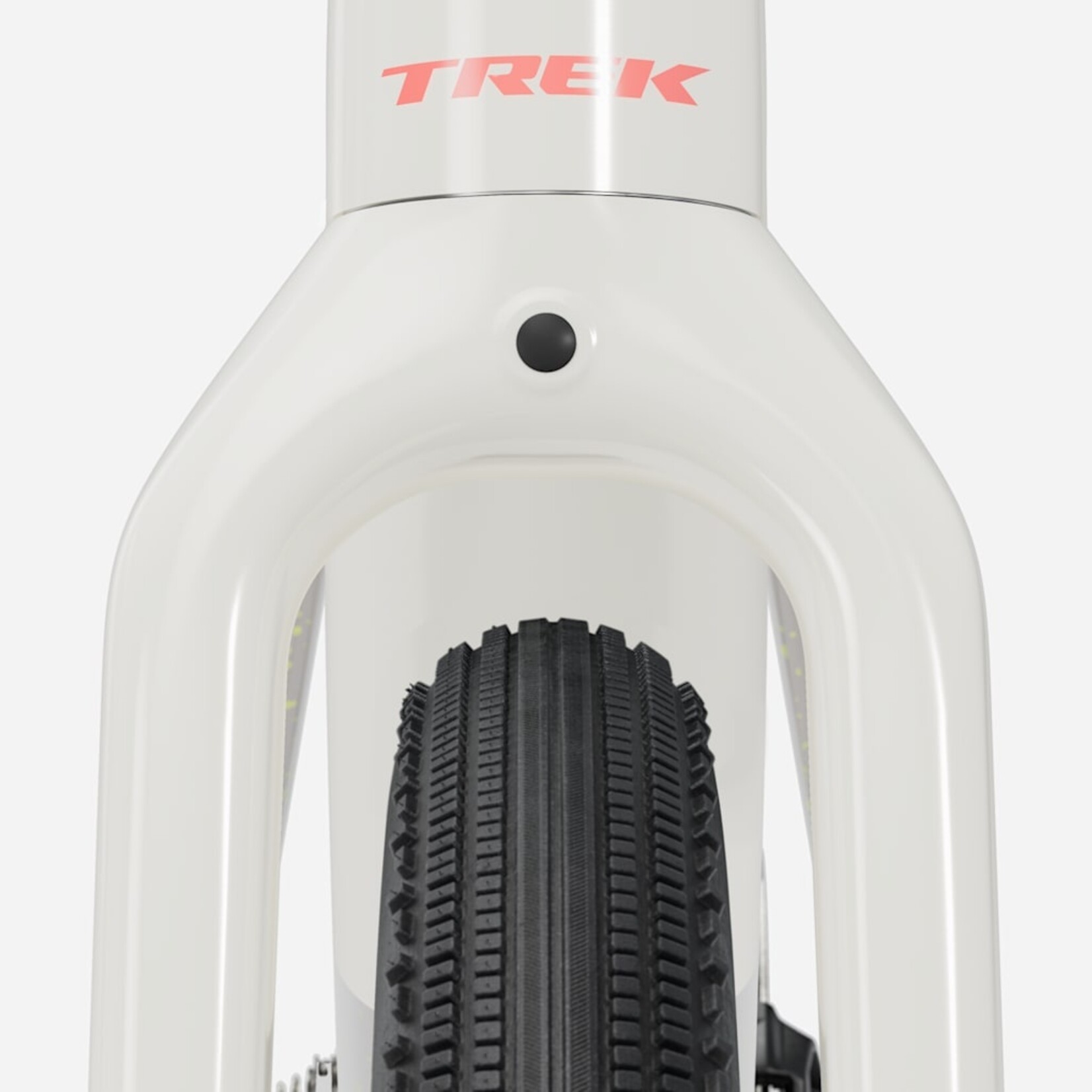

Clearance for 50mm tires (as measured) means you can add extra traction and cushion for rowdy gravel roads

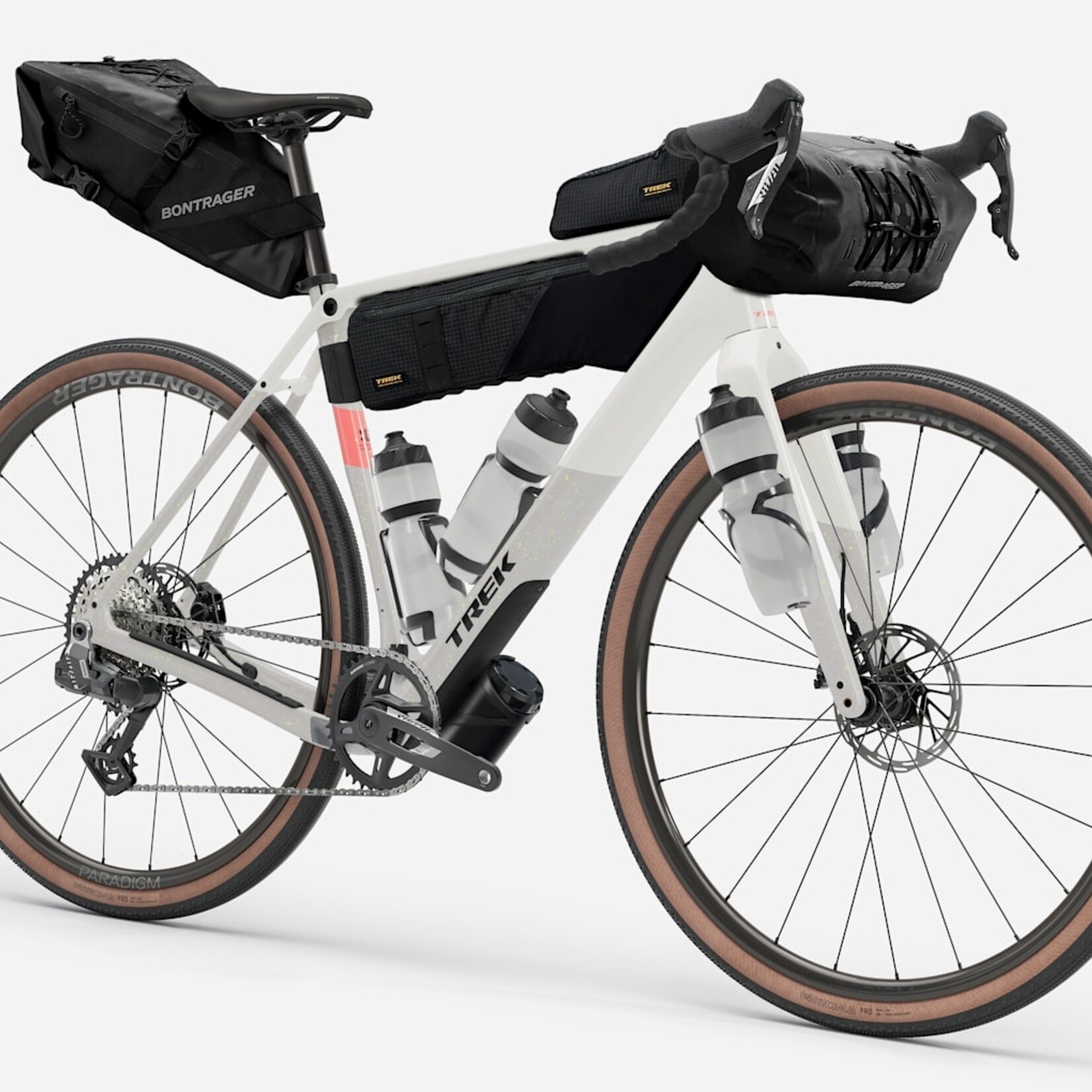

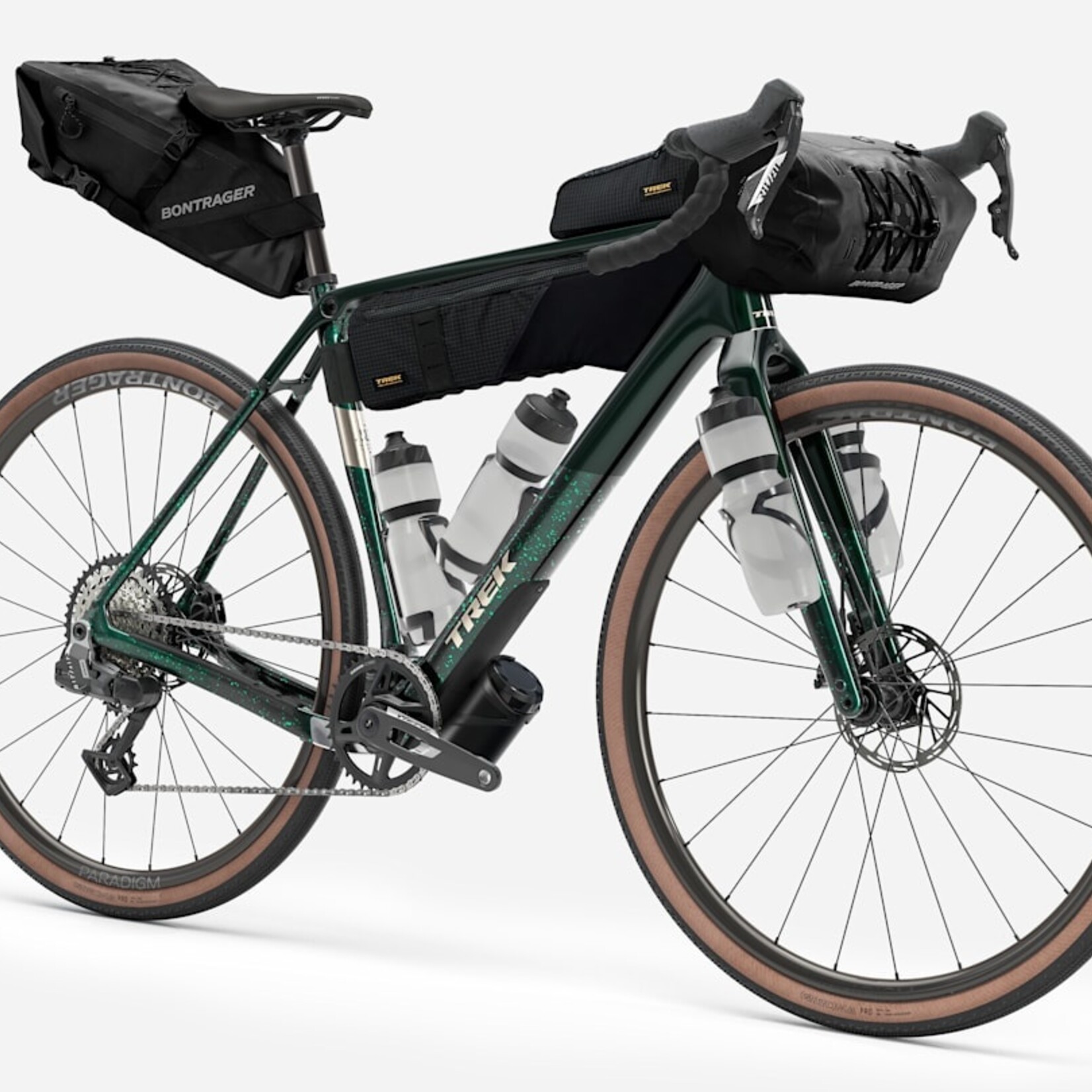

You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, fenders, and Adventure Bags that were designed to perfectly fit Checkpoint
Dropper post and suspension fork compatible (except size XS)

View more details at Trekbikes.com

Weight:	ML - 9.40 kg / 20.73 lbs (with TLR sealant, no tubes)
Frame:	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

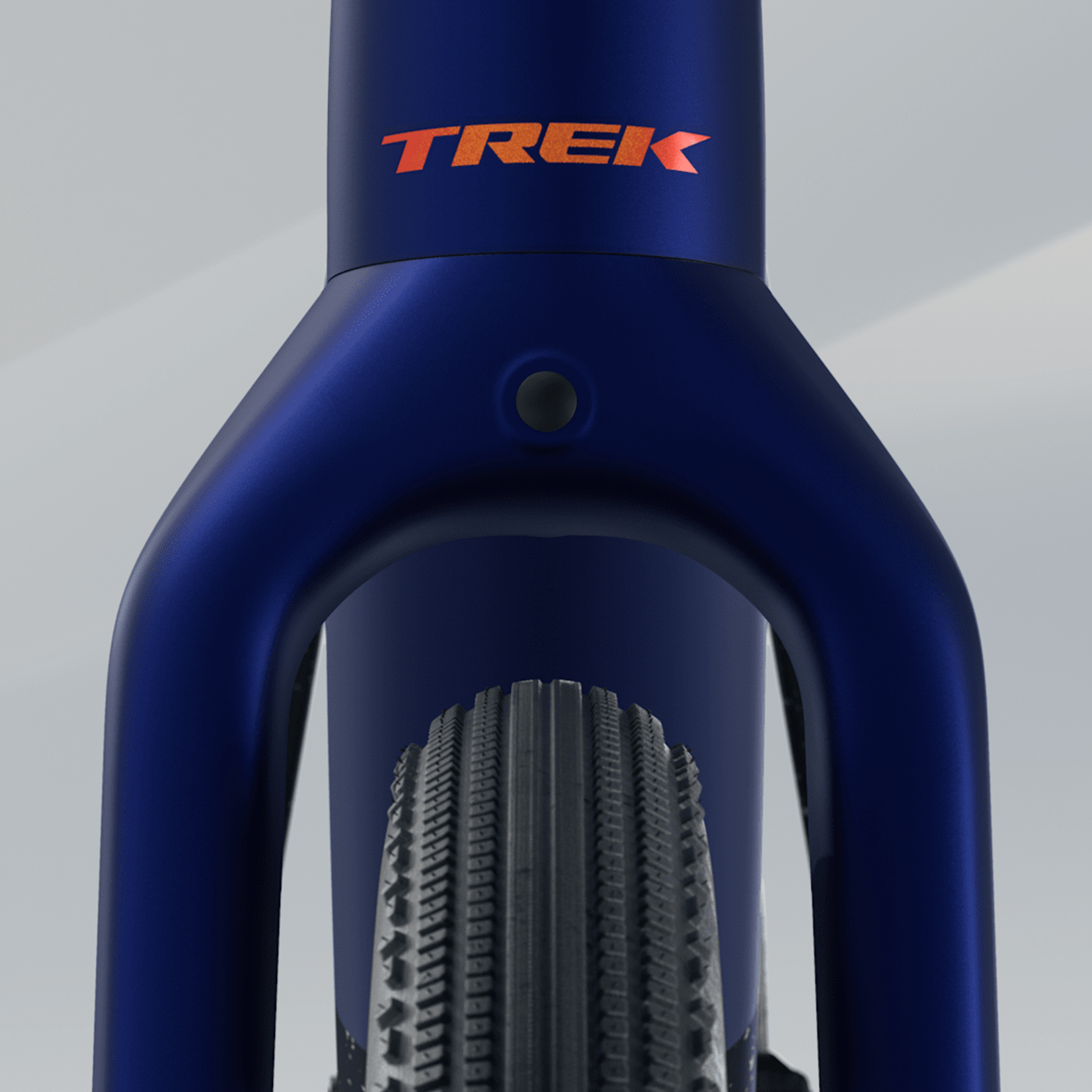

Fork:	Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Shock:	IsoSpeed
Front Shifter:	N/A
Front Derailleur:	N/A
Rear Shifter:	SRAM Rival eTap AXS, 12 speed
Rear Derailleur:	SRAM Rival XPLR eTap AXS, 44T max cog
Crankset:	SRAM Rival, 40T, DUB Wide, XS/S: 165mm, M: 170mm, ML/L: 172.5mm, XL: 175mm
Pedals:	N/A
Bottom Bracket:	SRAM DUB, T47 threaded, internal bearing
Cassette:	SRAM XG-1251, 10-44, 12 speed
Chain:	SRAM Rival, 12 speed
Front Brake:	SRAM Paceline
Front Brake Rotor:	SRAM Paceline, rounded, centerlock, 160mm
Rear Brake:	SRAM Paceline
Rear Brake Rotor:	SRAM Paceline, rounded, centerlock, 160mm
Brake Levers:	SRAM Rival
Front Hub:	Rapid Drive 54 road hub
Front Hub Skewer:	100x12 mm thru axle
Rear Hub:	SRAM XD-R 12-speed freehub
Rear Hub Skewer:	142x12 thru axle
Rims:	Bontrager Paradigm Comp 25
Front Tire:	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Rear Tire:	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm

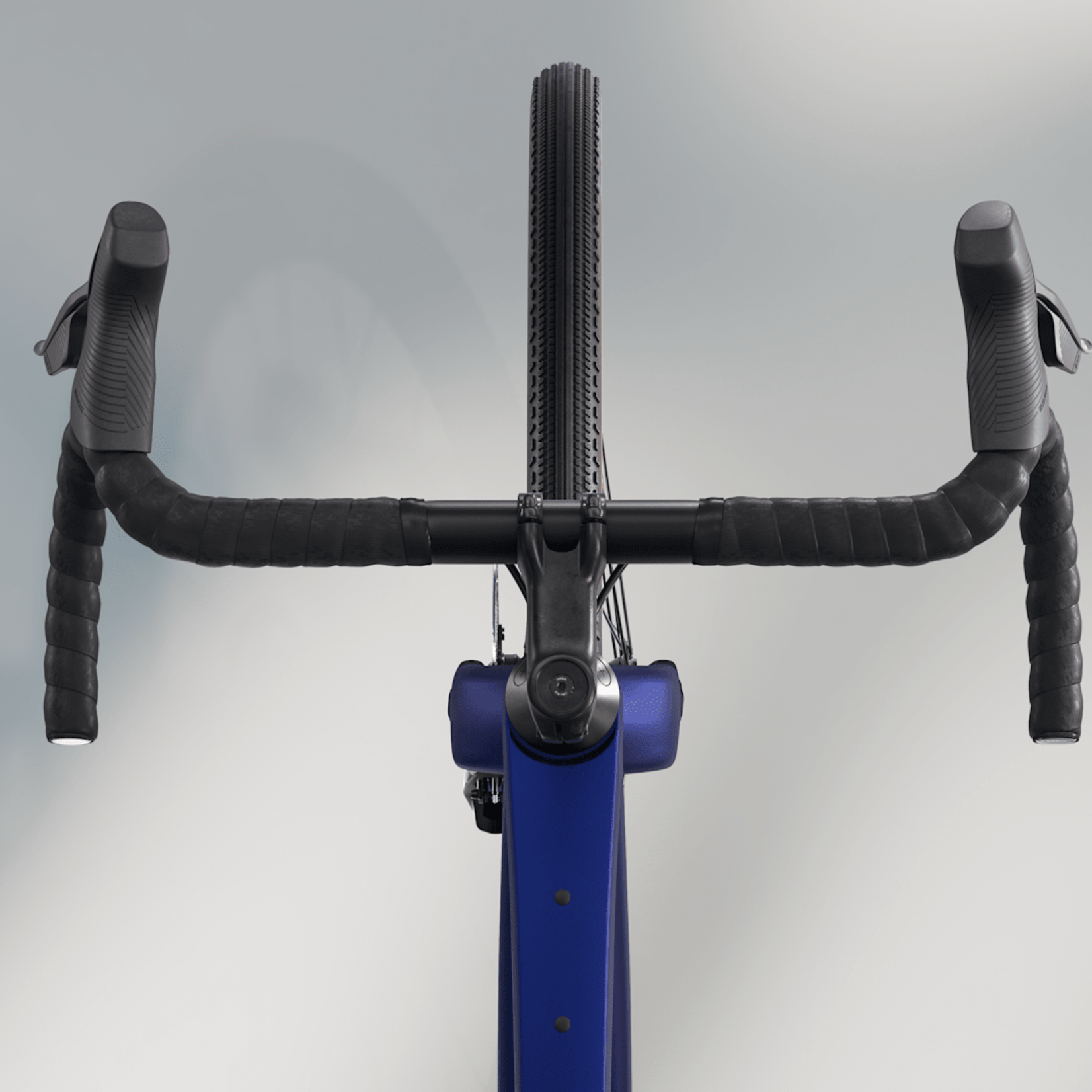

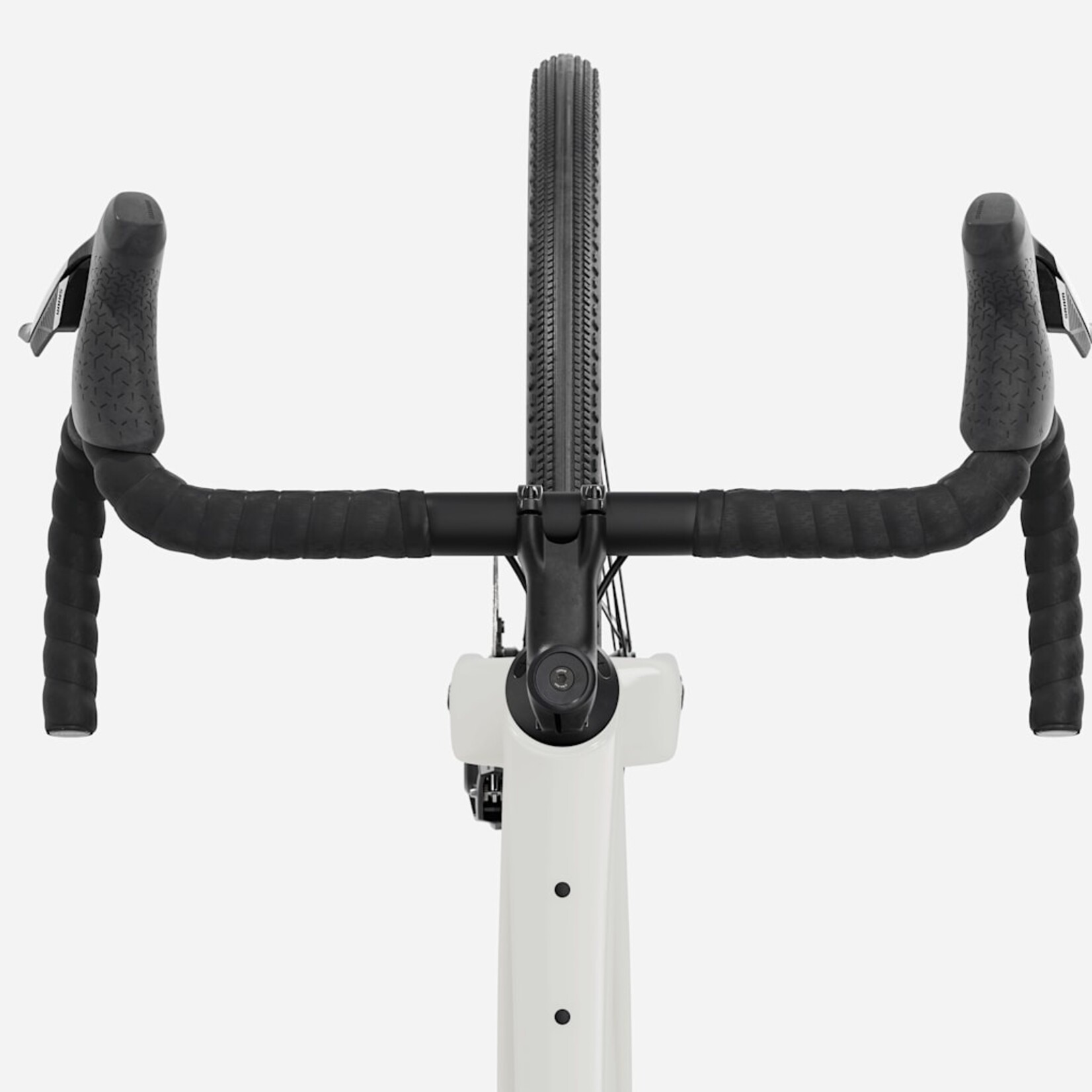

Handlebar:	Bontrager Elite Gravel, alloy, XS: 40cm, S/M: 42cm, ML/L: 44cm, XL: 46cm
Grips/ Bar Tape:	Bontrager Supertack Perf tape
Stem:	Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, XS: 60mm, S: 70mm, M/ML: 80mm, L: 90mm, XL: 100mm
Headset:	Carbon Steerer
Saddle:	Bontrager Verse P3, steel rails
Seatpost:	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Extras:

Weight:

ML - 9.40 kg / 20.73 lbs (with TLR sealant, no tubes)

Frame:

500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

Fork:

Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle

Shock:

IsoSpeed

Front Shifter:

N/A

Front Derailleur:

N/A

Rear Shifter:

SRAM Rival eTap AXS, 12 speed

Rear Derailleur:

SRAM Rival XPLR eTap AXS, 44T max cog

Crankset:

SRAM Rival, 40T, DUB Wide, XS/S: 165mm, M: 170mm, ML/L: 172.5mm, XL: 175mm

Pedals:

N/A

Bottom Bracket:

SRAM DUB, T47 threaded, internal bearing

Cassette:

SRAM XG-1251, 10-44, 12 speed

Chain:

SRAM Rival, 12 speed

Front Brake:

SRAM Paceline

Front Brake Rotor:

SRAM Paceline, rounded, centerlock, 160mm

Rear Brake:

SRAM Paceline

Rear Brake Rotor:

SRAM Paceline, rounded, centerlock, 160mm

Brake Levers:

SRAM Rival

Front Hub:

Rapid Drive 54 road hub

Front Hub Skewer:

100x12 mm thru axle

Rear Hub:

SRAM XD-R 12-speed freehub

Rear Hub Skewer:

142x12 thru axle

Rims:

Bontrager Paradigm Comp 25

Front Tire:

Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm

Rear Tire:

Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm

Handlebar:

Bontrager Elite Gravel, alloy, XS: 40cm, S/M: 42cm, ML/L: 44cm, XL: 46cm

Grips/ Bar Tape:

Bontrager Supertack Perf tape

Stem:

Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, XS: 60mm, S: 70mm, M/ML: 80mm, L: 90mm, XL: 100mm

Headset:

Carbon Steerer

Saddle:

Bontrager Verse P3, steel rails

Seatpost:

Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Extras:
