Trek Domane+ AL 5

You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.

A lightweight aluminum frame and fork, a natural-feeling HyDrive hub motor (250W, 40Nm) that assists up to 32 km/h with a 250Wh battery for a range of up to 55 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x11 drivetrain, tubeless ready wheels, and vibration-absorbing Elite IsoZone handlebars.

Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.

This e-road bike looks, rides, and feels more like a traditional road bike
The HyDrive pedal assist system has a hub motor for a more natural ride feel
Easily change electric assist level with hood-mounted controls, and keep track of assist and battery levels with the top tube display.
The stable Endurance Geometry delivers comfort and confidence
Double your range with a 250Wh plug-and-play Range Extender battery that sits in your bottle cage

View more details at Trekbikes.com

Weight:	56 - 14.06kg/31lbs
Frame:	100 Series Alpha Aluminum
Fork:	Domane+ carbon
Shock:	N/A

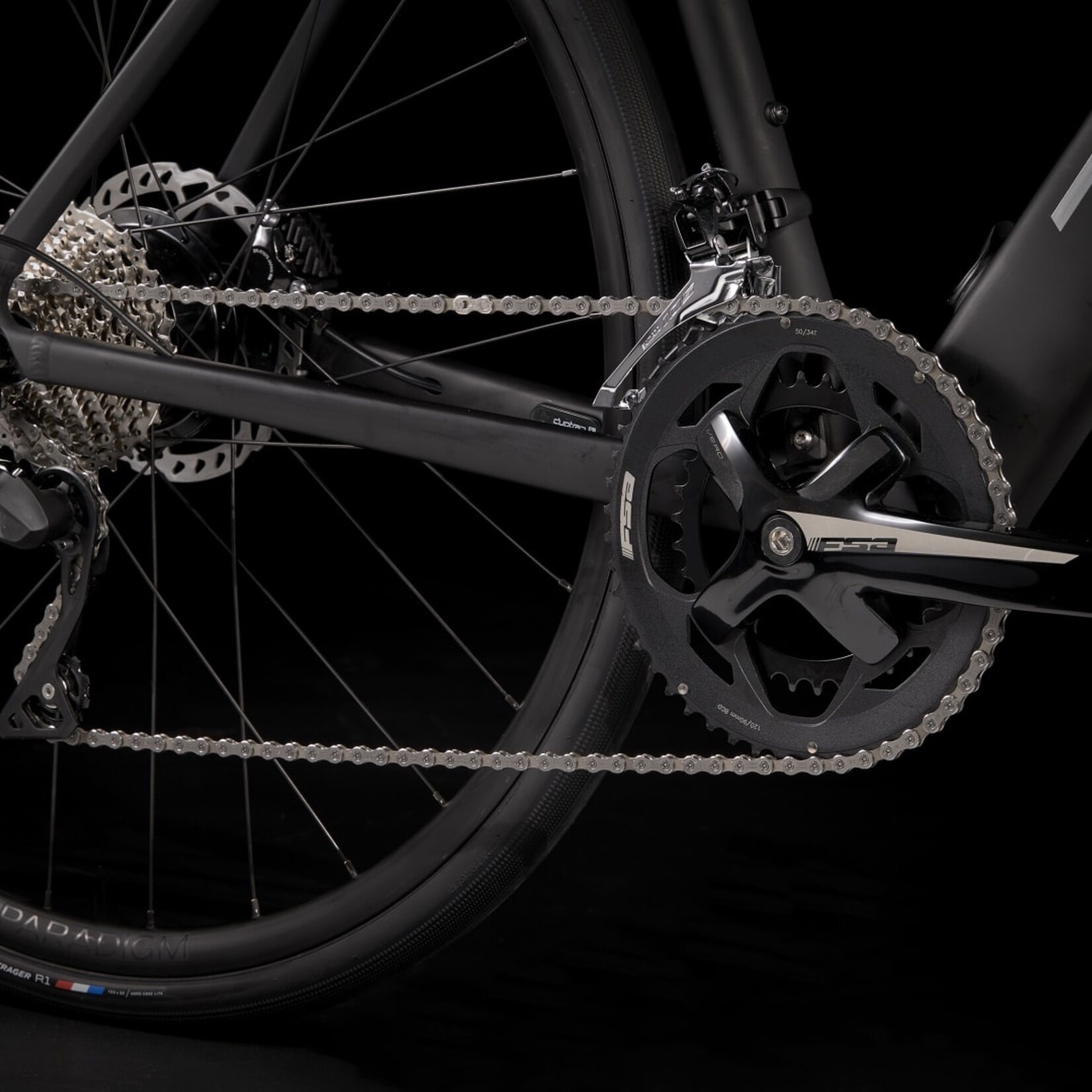

Front Shifter:	Size 49-52cm: Shimano 105 R7025, short-reach leve, Size 54-61cm: Shimano 105 R7020
Front Derailleur:	Shimano 105 R7000, 31.8mm clamp
Rear Shifter:	Size 49-52cm: Shimano 105 R7025, short-reach leve, Size 54-61cm: Shimano 105 R7020, 11 speed
Rear Derailleur:	Shimano 105 R7000, long cage, 34T max cog
Crankset:	FSA Vero Pro, 50/34, Size 49cm: 165mm, 52cm: 170mm, 54-56cm: 172.5mm, 58-61: 175mm
Pedals:	N/A
Bottom Bracket:	Torque sensor, threaded, 110mm spindle
Cassette:	Shimano 105 HG700-11, 11-34, 11 speed
Chain:	Shimano HG601
Front Brake:	Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
Front Brake Rotor:	Shimano RT66, 6-bolt, 160mm
Rear Brake:	Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
Rear Brake Rotor:	Shimano RT66, 6-bolt, 160mm
Brake Levers:	Shimano 105
Front Hub:	Formula RX-812 alloy, sealed bearing, 6-bolt
Front Hub Skewer:	100x12mm thru axle
Rear Hub:	Hyena hub drive motor, 40Nm, 250W
Rear Hub Skewer:	Hyena hub drive motor, 40Nm, 250W
Rims:	Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
Front Tire:	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Rear Tire:	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Handlebar:	Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width, 52cm: 40cm width, 54-56cm: 42cm width, 58-61cm: 44cm width
Grips/ Bar Tape:	Bontrager Supertack Perf tape
Stem:	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length, 52-54cm: 90mm, 56-58cm: 100mm, 61cm: 110mm
Headset:	FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Saddle:	Bontrager Verse Short Comp, steel rails, 155mm width, 54-61cm: 145mm
Seatpost:	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Motor:	Hyena hub drive motor, 40Nm, 250W
Battery:	Hyena hub drive motor, 40Nm, 250W
Controller:	Integrated controller
Charger:	Hyena Gen 2 Charger with US Cable
Lights:	N/A
Extras:

Weight:

56 - 14.06kg/31lbs

Frame:

100 Series Alpha Aluminum

Fork:

Domane+ carbon

Shock:

N/A

Front Shifter:

Size 49-52cm: Shimano 105 R7025, short-reach leve, Size 54-61cm: Shimano 105 R7020

Front Derailleur:

Shimano 105 R7000, 31.8mm clamp

Rear Shifter:

Size 49-52cm: Shimano 105 R7025, short-reach leve, Size 54-61cm: Shimano 105 R7020, 11 speed

Rear Derailleur:

Shimano 105 R7000, long cage, 34T max cog

Crankset:

FSA Vero Pro, 50/34, Size 49cm: 165mm, 52cm: 170mm, 54-56cm: 172.5mm, 58-61: 175mm

Pedals:

N/A

Bottom Bracket:

Torque sensor, threaded, 110mm spindle

Cassette:

Shimano 105 HG700-11, 11-34, 11 speed

Chain:

Shimano HG601

Front Brake:

Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin

Front Brake Rotor:

Shimano RT66, 6-bolt, 160mm

Rear Brake:

Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin

Rear Brake Rotor:

Shimano RT66, 6-bolt, 160mm

Brake Levers:

Shimano 105

Front Hub:

Formula RX-812 alloy, sealed bearing, 6-bolt

Front Hub Skewer:

100x12mm thru axle

Rear Hub:

Hyena hub drive motor, 40Nm, 250W

Rear Hub Skewer:

Hyena hub drive motor, 40Nm, 250W

Rims:

Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve

Front Tire:

Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c

Rear Tire:

Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c

Handlebar:

Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width, 52cm: 40cm width, 54-56cm: 42cm width, 58-61cm: 44cm width

Grips/ Bar Tape:

Bontrager Supertack Perf tape

Stem:

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length, 52-54cm: 90mm, 56-58cm: 100mm, 61cm: 110mm

Headset:

FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom

Saddle:

Bontrager Verse Short Comp, steel rails, 155mm width, 54-61cm: 145mm

Seatpost:

Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Motor:

Hyena hub drive motor, 40Nm, 250W

Battery:

Hyena hub drive motor, 40Nm, 250W

Controller:

Integrated controller

Charger:

Hyena Gen 2 Charger with US Cable

Lights:

N/A

Extras:
